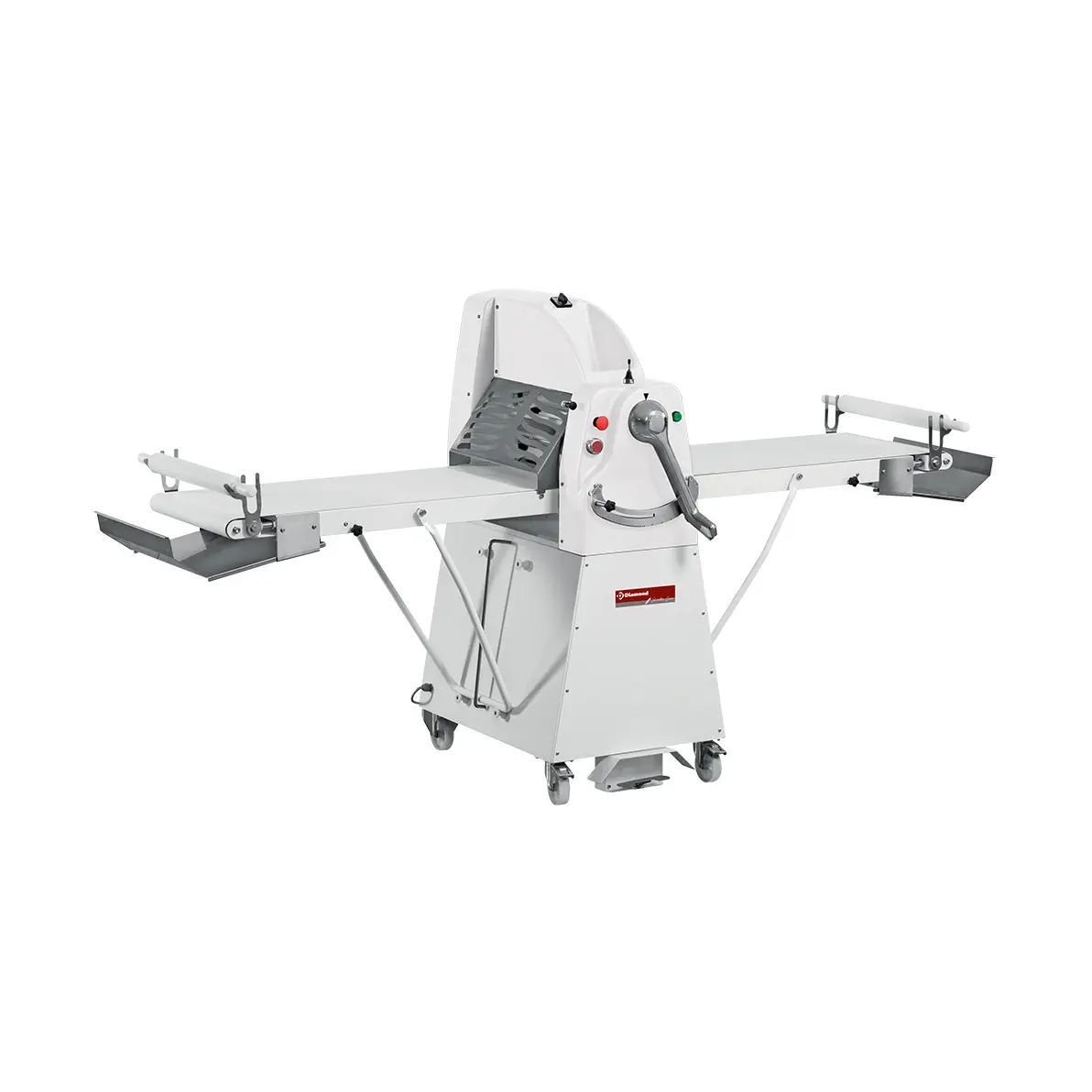

Laminoir à bande, sur socle , 500x1000 mm - Vitesse variable
Référence : LM/50-10MVV
-
Garantie 1 an pièces
-
Comment fonctionnent les frais de livraison ?
- Mechanical controls, mats manipulated by joystick.
- Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes.
- Manual and pedal controls.
- Variable speed (10 rpm to 60 rpm), with Inverter.
- Side tables 1000x500 mm (foldable)
- Cylinder length 500 mm
- Roll opening from 0 - 36 mm, rolling diameter 60 mm.
- Travel speed 35 metres/minute
- Closed overall dimensions 580x920xh1940
- Standard: 2 stainless steel harvesting terminals, 2 pastry rollers.
- Strips made with specific materials for food use.
- Precise regulation of the thickness of the dough sheet, constant production.
- Scrapers and supports made with specific materials (POM-C) for food use.
- Easy disassembly and reassembly of the scrapers, without tools.
- Chrome-plated and ground steel cylinders.
- Harvesting bin under the cylinders and under the mats.
- Belt with double direction of travel (Right & Left).
- Frame in painted steel (epoxy).
- Low voltage controls 24V.
- Emergency stop button type "punch".
- Roller protection grids, made of stainless steel.
- Traction system, self-lubricated.
- Superior flour bin.
- Possibility to raise the tables, to reduce the space required for storage.
- The device is built in compliance with the current CE standards.
| Marque | |
|---|---|
| Marque | Diamond |
| Dimensions | |
| Longueur (mm) | 2370 |
| Profondeur (mm) | 2700 |
| Hauteur (mm) | 1380 |
| Poids brut (kg) | 240 |
| Autres | |
| Alimentation | 230 V (mono) |
| Puissance (W) | 550 |
