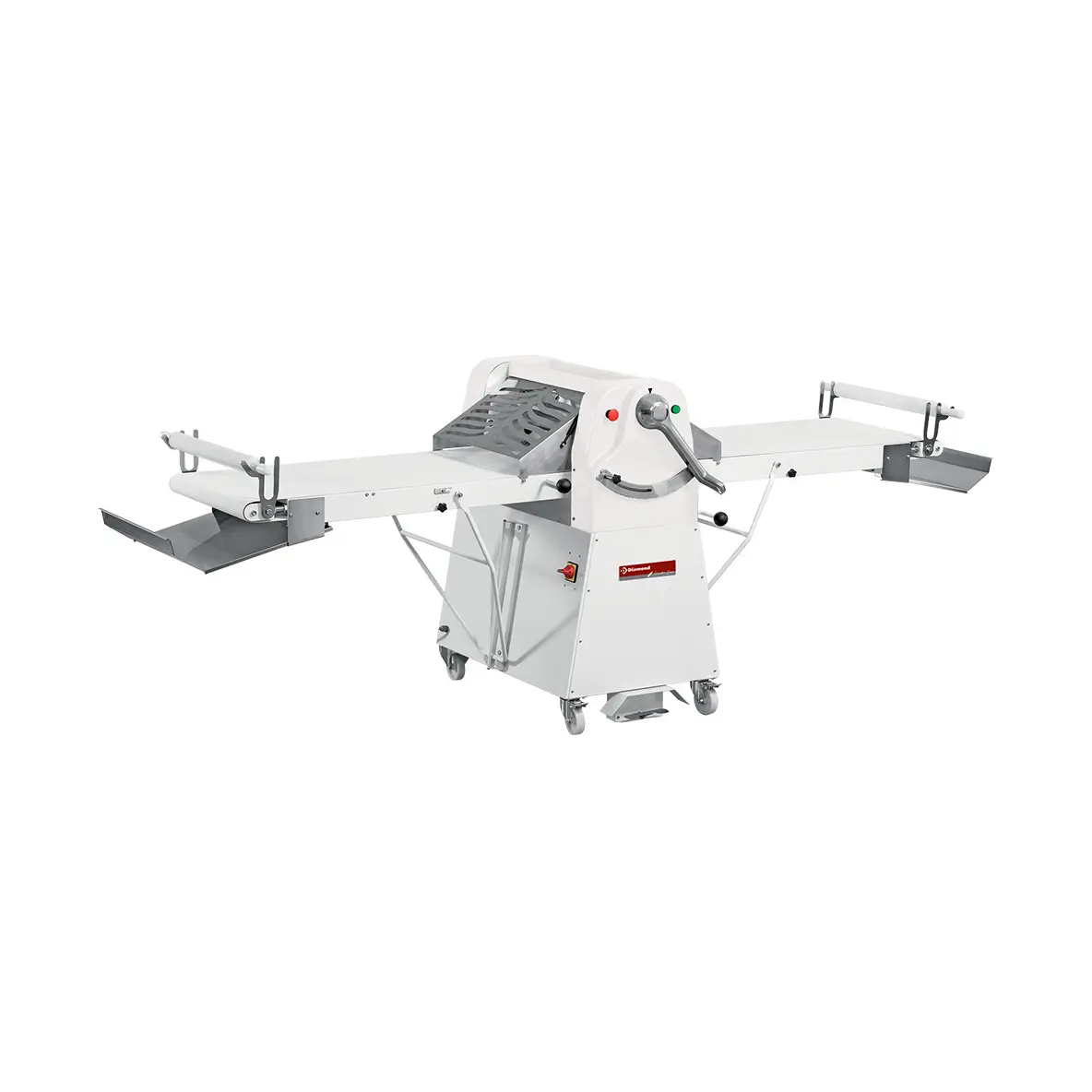

Laminoir à bande sur socle, 600x1200 mm
Référence : LM/60-120SS
-
Garantie 1 an pièces
-
Comment fonctionnent les frais de livraison ?
- Mechanical controls, mats manipulated by a lever arm.
- Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes.
- Manual and pedal controls.
- Removable top flour bin.
- Removable tables.
- Lifting of safety grids assisted by pistons.
- 1 speed
- 1200x600 mm side tables (can be lifted or dismantled)
- Cylinder length 600 mm
- Opening of the cylinders from 0 - 50 mm, rolling diameter 80 mm.
- Travel speed 35 metres/minute
- Closed overall dimensions 620x1060xh2050
- Standard: 2 stainless steel harvesting terminals, 2 pastry rollers.
- Strips made with specific materials for food use.
- Precise regulation of the thickness of the dough sheet, constant production.
- Scrapers and supports made with specific materials (POM-C) for food use.
- Easy disassembly and reassembly of the scrapers, without tools.
- Chrome-plated and ground steel cylinders.
- Harvesting bin under the cylinders and under the mats.
- Belt with double direction of travel (Right & Left).
- Frame in painted steel (epoxy).
- Low voltage controls 24V.
- Emergency stop button type "punch".
- Roller protection grids, made of stainless steel.
- Traction system, self-lubricated.
- Superior flour bin.
- Possibility to raise the tables, to reduce the space required for storage.
- The device is built in compliance with the current CE standards.
| Marque | |
|---|---|
| Marque | Diamond |
| Dimensions | |
| Longueur (mm) | 2770 |
| Profondeur (mm) | 3290 |
| Hauteur (mm) | 1170 |
| Poids brut (kg) | 292 |
| Autres | |
| Alimentation | 400 V (triphasé) |
| Puissance (W) | 750 |
